High Speed film blowing machine
High Speed film blowing machine with special screw and barrel,mould,can produce high capacity film.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
color
red,blue,yellow
Material
HDPE LDPE LLPDE
High Speed film blowing machine with high speed screw and barrel,equip with big motor and inverter,can produce high capacity polyethylene film,suit for general packaging products such as T-shirt bags, supermarket bags,shopping bag,flat bags,sachet water bag,packing film and many others.
High Speed film blowing machineis used for blowing plastic film like HDPE,LDPE,LLDPE, etc .The extruder system has super strong mechanism intensity,well capability and wear,screw and die special design. For increasing the capacity.
Optional Device:
1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment
| Model | SJ-A50H | SJ-A55H | SJ-A60H | SJ-A65H |
| Usage | Flexible packaging bags,T-shirt bag,Plastic Shopping Bag,trash bag,packing film,table cover,shrink film | |||
| Diameter of screw | Φ50 | Φ55 | Φ60 | Φ65 |
| Mould size | HD: Φ60,LD: Φ150 | HD: Φ80,LD: Φ180 | HD: Φ100,LD: Φ220 | HD: Φ120,LD: Φ250 |
| Reduced diameter of film | 100-600 mm | 200-800 mm | 300-1000 mm | 400-1200 mm |
| One side film Thickness | HD:0.008-0.08mm,LD:0.02-0.1mm | |||
| Max.capacity (Kg/h) | 35-50kg/h | 40-70kg/h | 60-100kg/h | 80-120kg/h |
| Ratio of Screw L/D | 30:1 | 30:1 | 30:1 | 30:1 |
| Screw material | 38CrMoAl | 38CrMoAl | 38CrMoAl | 38CrMoAl |
| Power of main motor(kw) | 15 | 18.5 | 30 | 37 |
| Power of Traction | 1.1 kw | 1.1 kw | 1.5 kw | 1.5 kw |
| Heating Power(kw) | 11 | 13 | 19 | 21 |
| Delivery Day | 30-45 days | 30-45 days | 30-45 days | 30-45 days |
| Machine size (m) | 4.8×1.9×3.8 | 5.5×2.1×4.6 | 6.5×2.3×5.2 | 6.5×2.5×5.2 |
| Weight(T) | 1.5T | 2T | 2.3T | 2.6T |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | |||
| Material Core Diameter | 76mm(3 inch) | |||
| Machine Working Time | 24 hours * 7 days | |||
| Warranty | 1 year | |||
| Optional Devices | Auto loader, masterbatch dosing system, rotary die head, bubble controller, corona treater, embossing roller, automatic winder, double winder | |||
| Technical Assistance | Engineers available to service machinery overseas | |||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Install machines in Saudi Arabia.

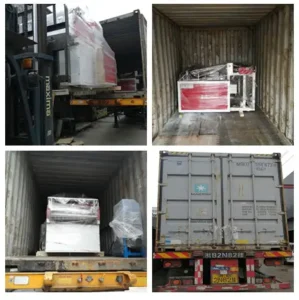

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as

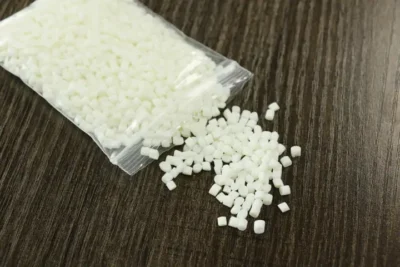

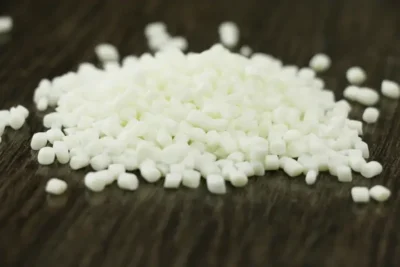

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
